Can Am Outlander 1000/850 Dual Slip On (25-26) Installation Instructions

Removal

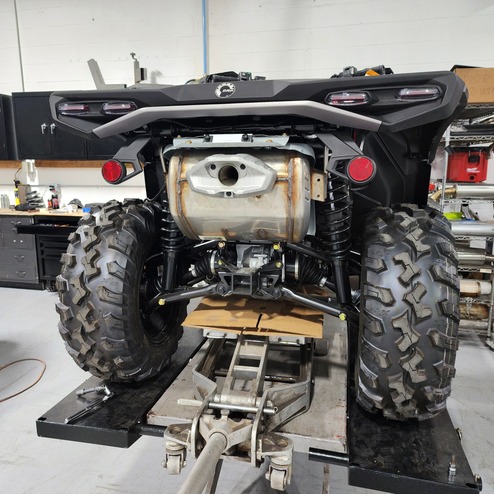

1. Beging by removeing the rear bumper and bumper support tubes.(See Figure #1)

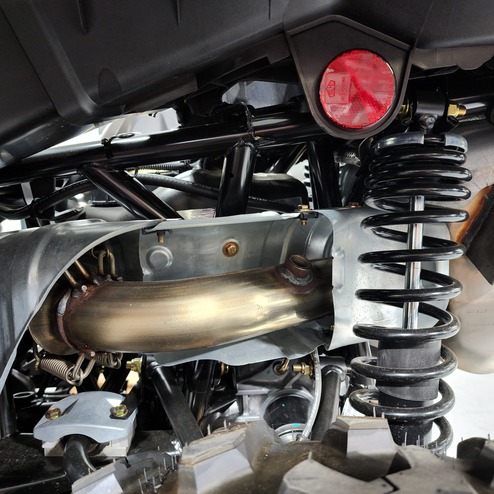

2. Remove the rear shock heat shield and O2 sensor from the muffler assembly(See Figure #2)

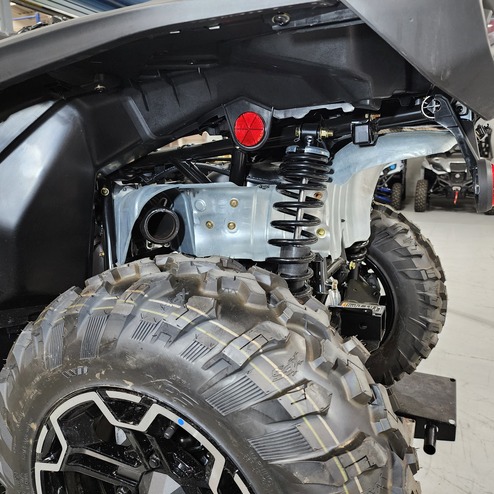

3. Remove the Factory Muffler assembly by sliding it towards the rear of the vehicle and rotating it to get the inlet passed the shock.(See Figure #3)

Installation

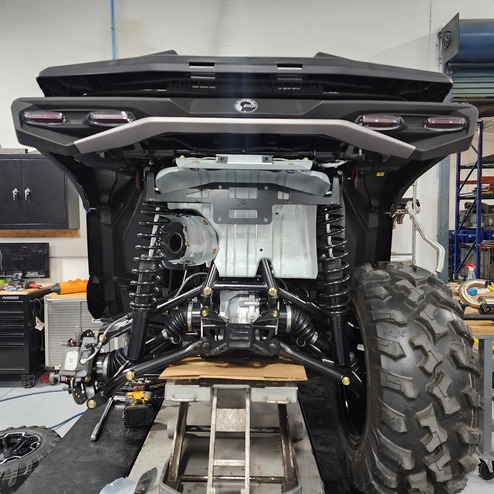

1. Begin by installing the HMF Dual Performance Mounting bracket into the factory mounting points. (See Figure #4)

2. Using the supplied ( 2x m8-1.25x25 hex bolts, 4x 1/4" Flat Washers, 2x M8-1.25 Nylock nuts ) secure the Lower HMF Muffler (no badge) to the Mounting bracket.

3. Using the supplied ( 4x Long Neck Springs ) Install the HMF Mid Pipe between the factory Head Pipe and Lower HMF Muffler.

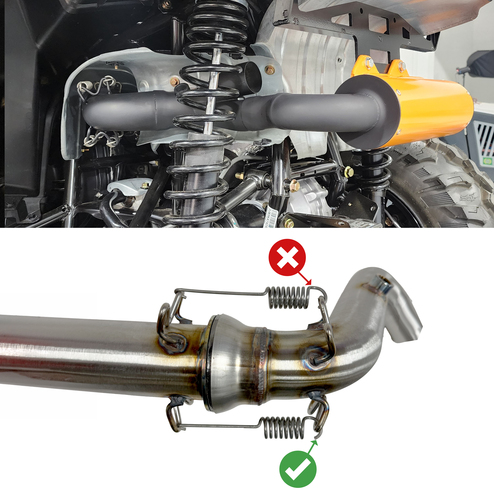

(NOTE: When installing the Long Neck Springs make sure to orient the springs as shown in the picture with the spring hooks from the inside out) (See Figure #5)

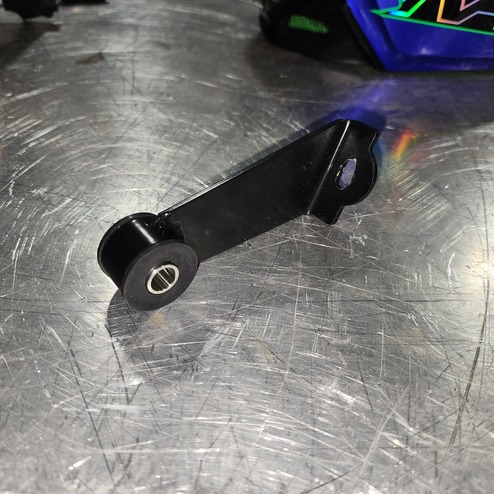

4. Assemble the HMF Support Bracket using the supplied ( 2x Rubber mounts, Small Steal Spacer ) (See Figure #6)

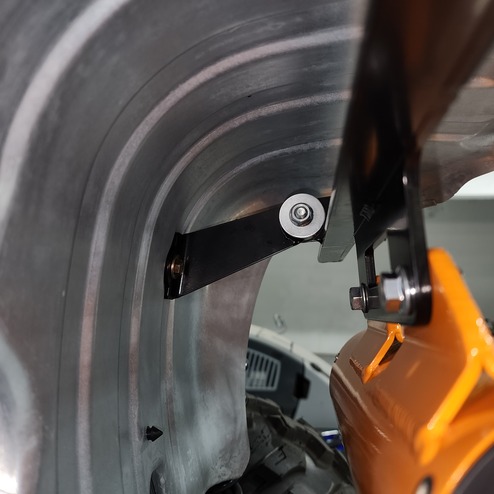

5. Using the supplied ( M8-1.25x40, 2x 5/16" Fender Washers, M8-1.25 Nylock Nut, M6-1.0x20 Hex Bolt, #10 Flat Washer ) install the Support Bracket between the Dual Performance Bracket and and the Factory heat shield mount point. (See Figure #7)

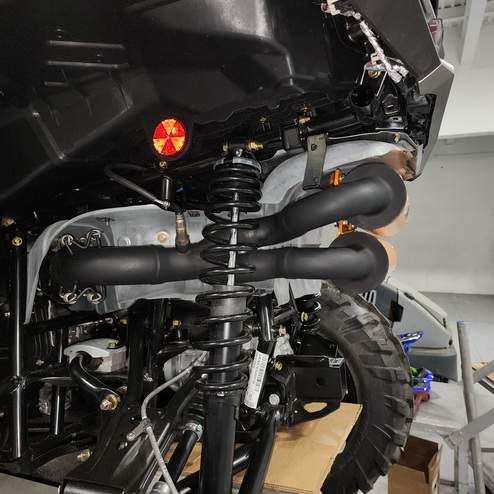

6. Using the remaining ( 2x M8-1.25x25, 4x 1/4" Flat Washers, 2x M8-1.25 Nylock Nuts ) install the Upper HMF Upper Muffler (with badge) By slipping the inlet onto the Mid Pipe and Mounting Bracket and reinstall the O2 sensor into the Mid Pipe. (See Figure #8)

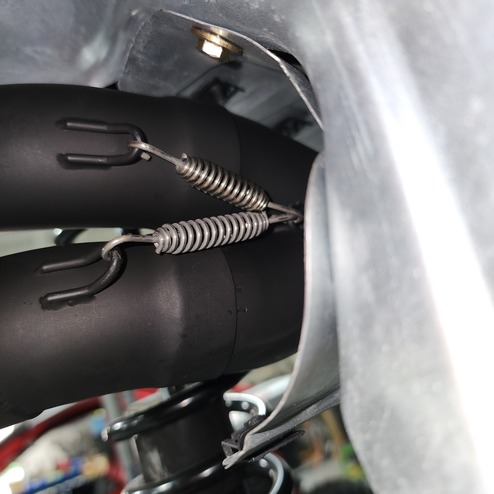

7. Secure the Upper and Lower Muffler assemblies to the Mid Pipe using the supplied ( 2x Short Springs )(See Figure #9)

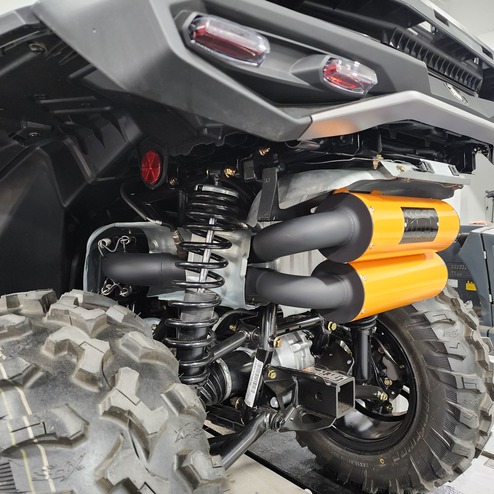

8. Reinstall the Factory Shock heat shield and bumpers.(See Figure #10)
